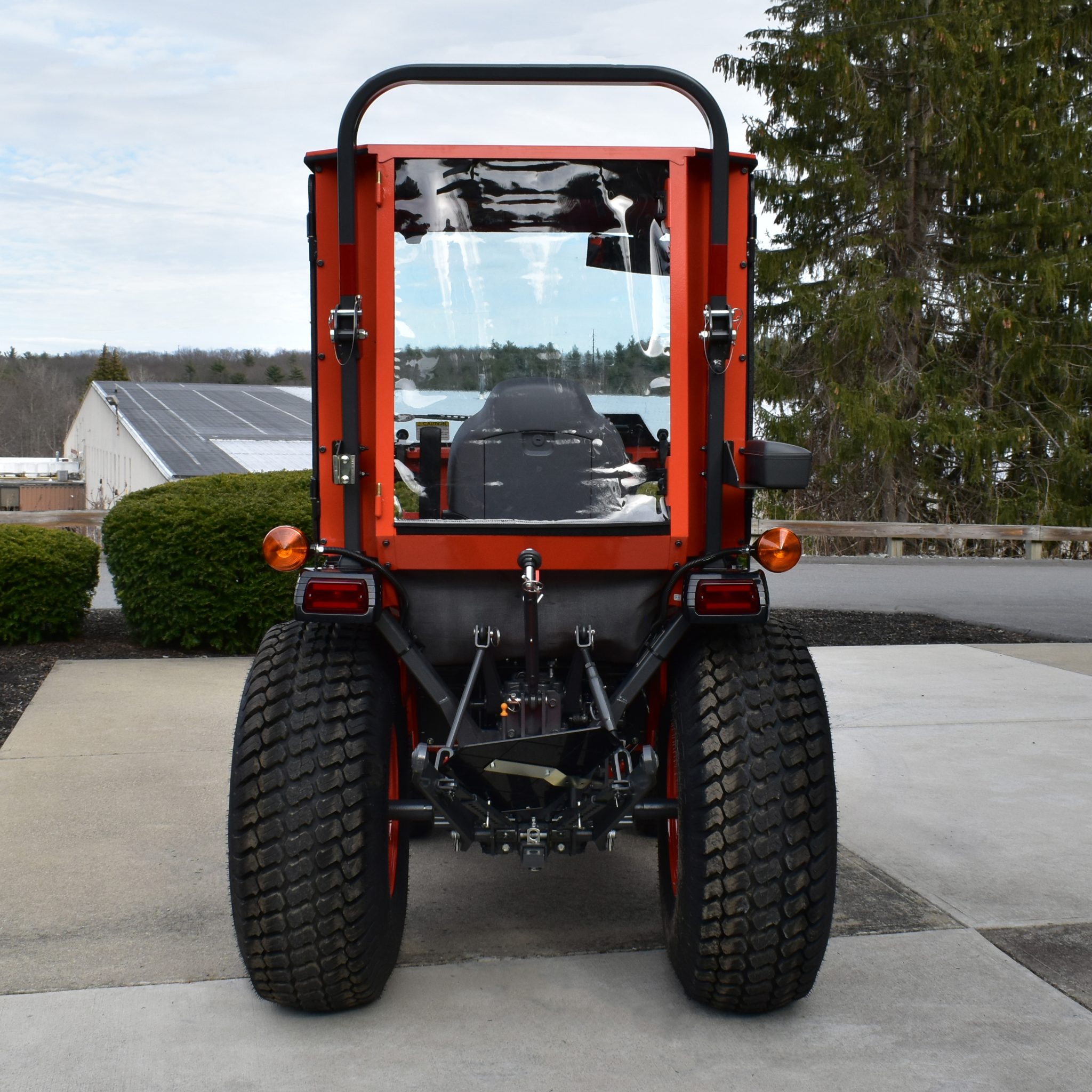

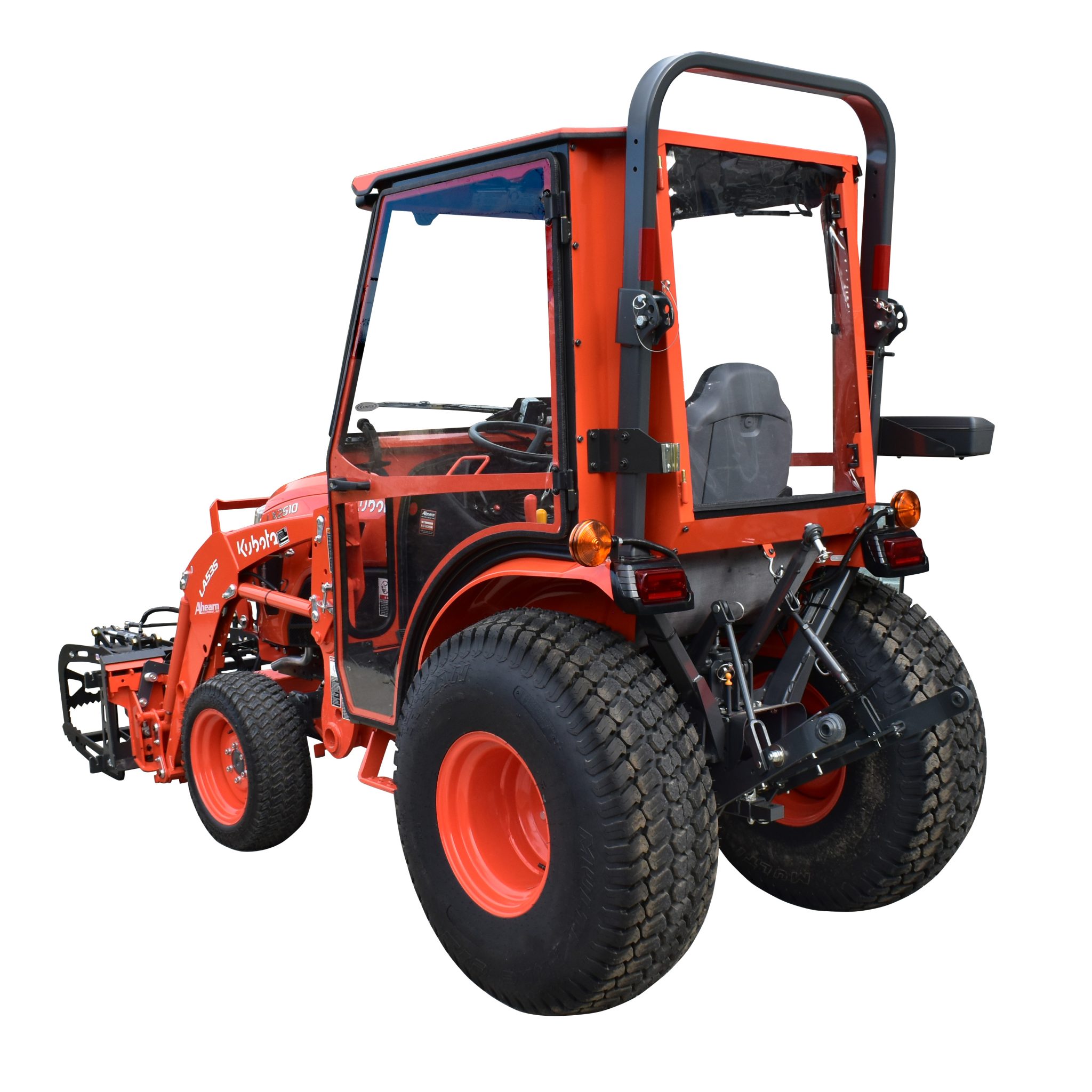

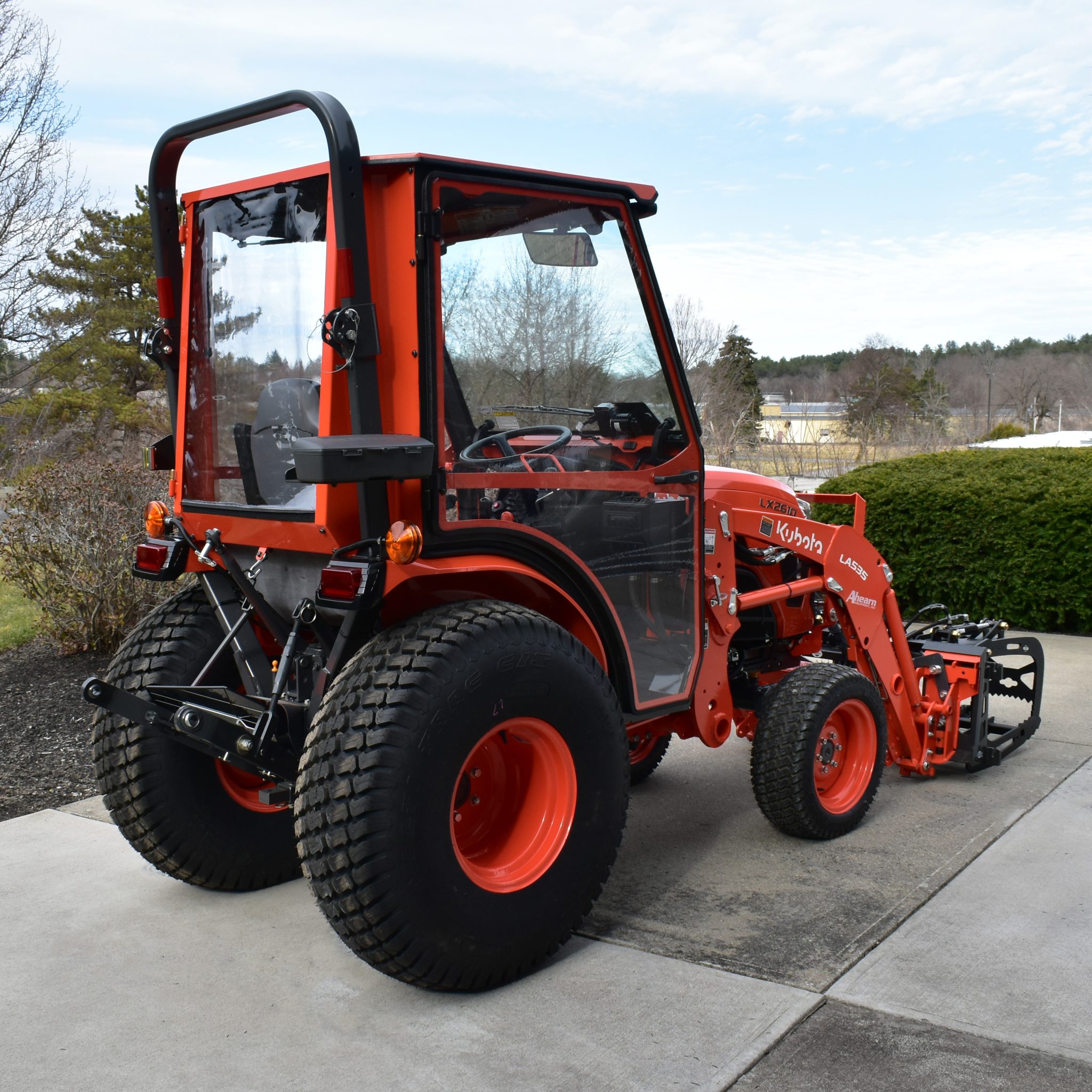

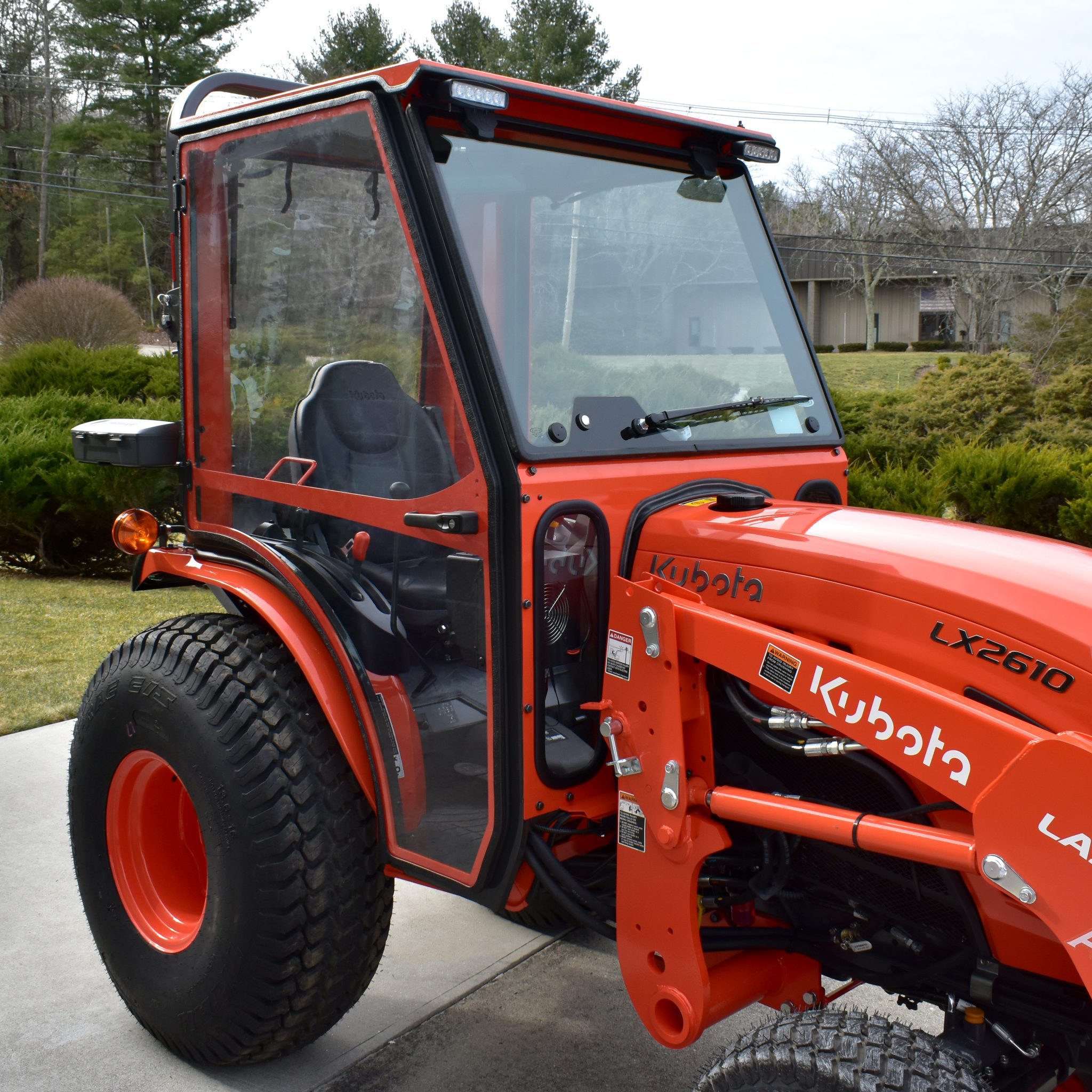

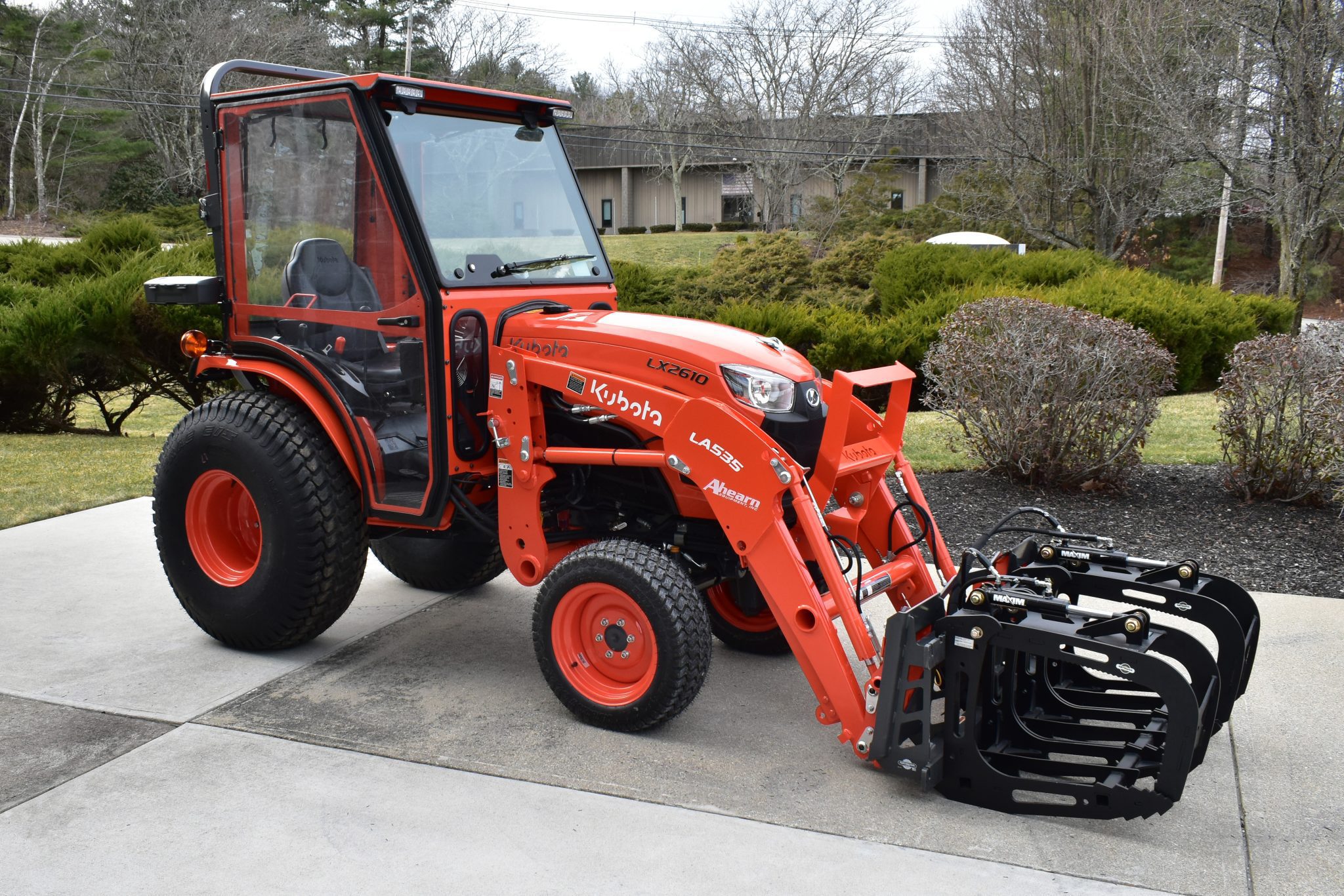

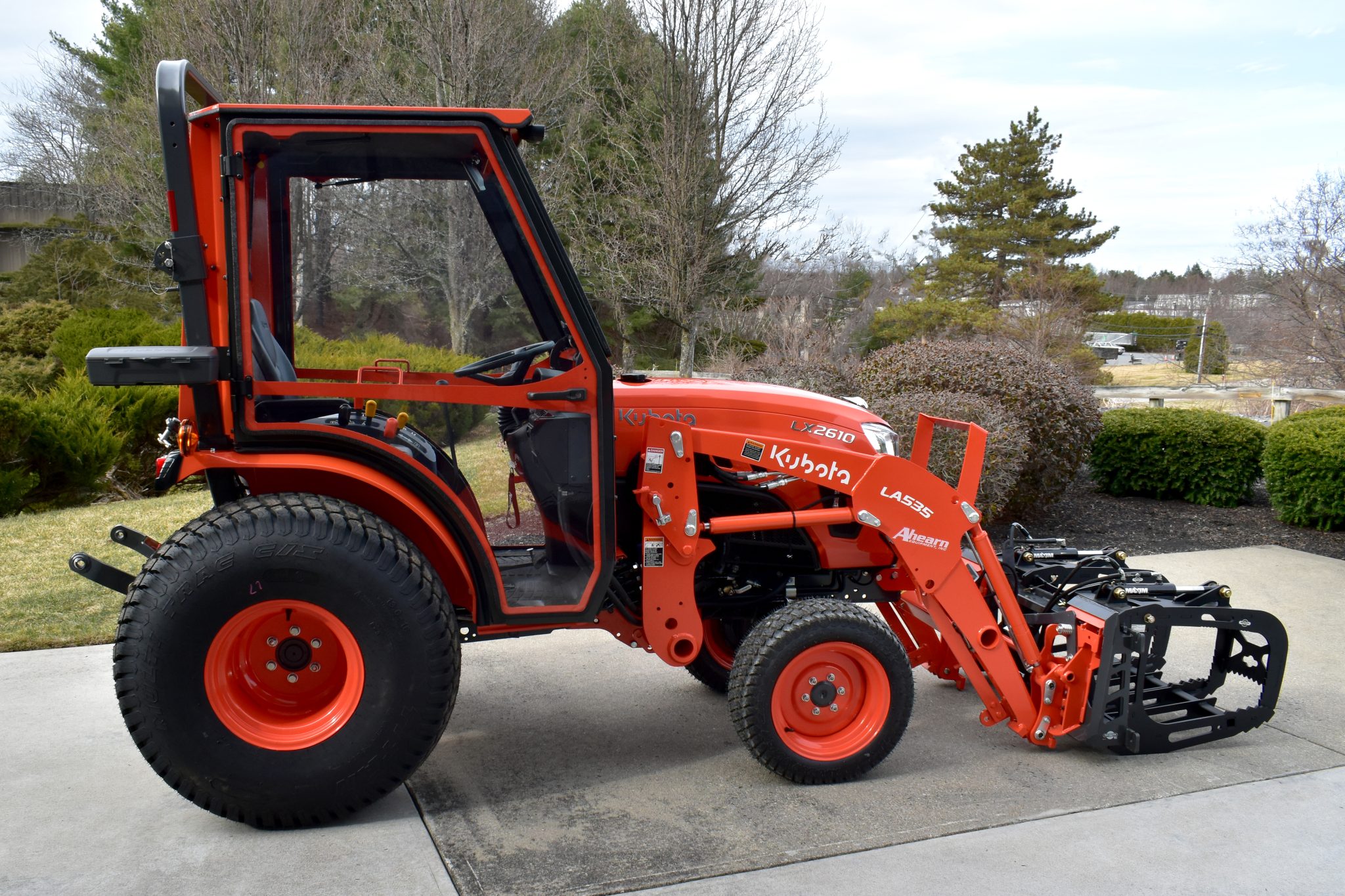

Plus Cab for the Kubota LX
$3,775.00
Description
Plus Cab models feature framed, clear vinyl doors. This traditional rear-hinged door design provides a weather seal in cold or windy conditions, exceptional side visibility, and locks for added security. The Plus Cab is designed as a mid-point option for the customer who needs some weather protection, prefers excellent side visibility, but does not need the maximum weather protection offered by steel doors with glass windows featured in our Advantage Cabs.
Curtis Plus Series Cab fits Kubota models LX2610HSD, LX2610SUHSD, and LX3310HSD. Compatible with the LA535 loader. Compatible with the BH 77 backhoe when the 1KLXBK kit is added.
SKU:

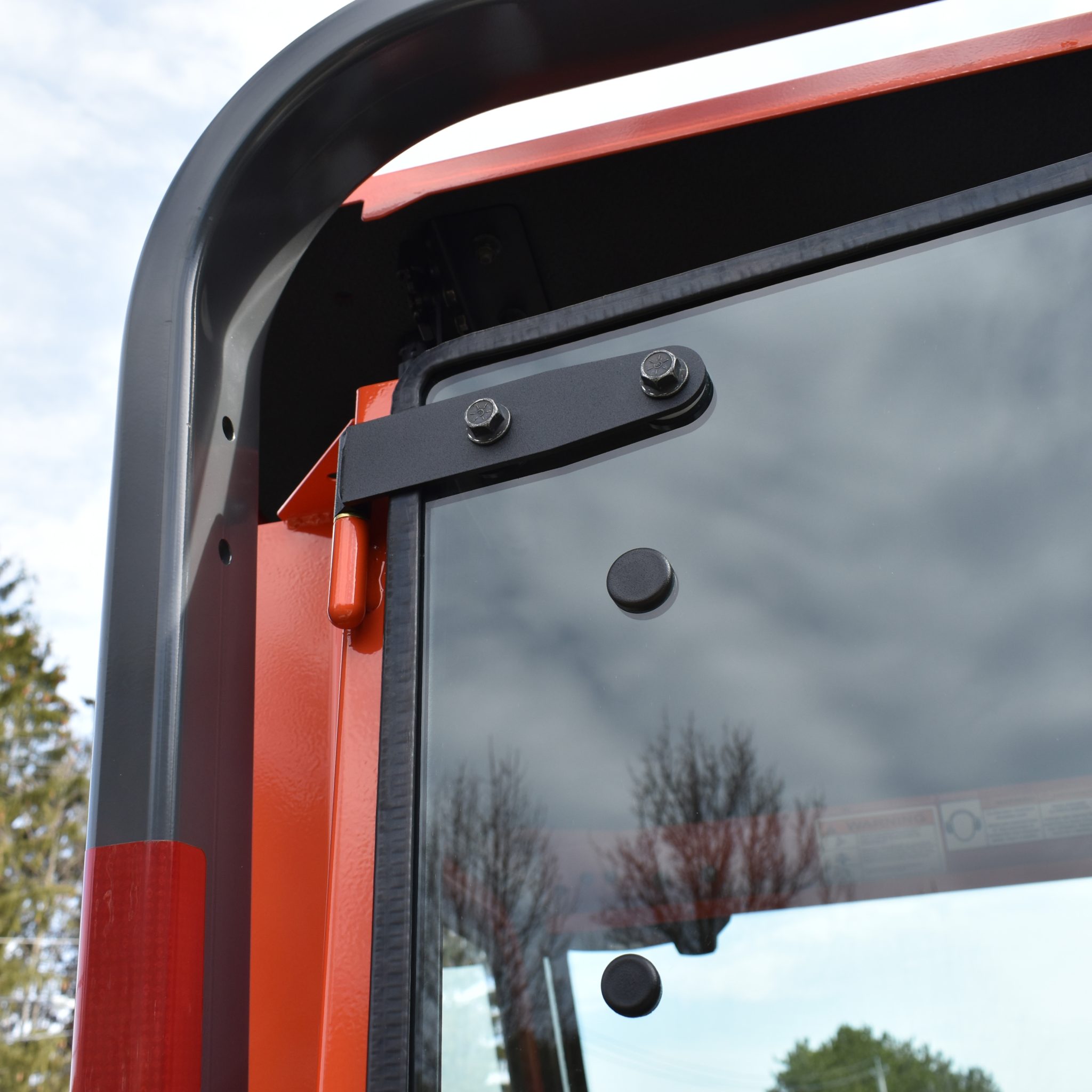

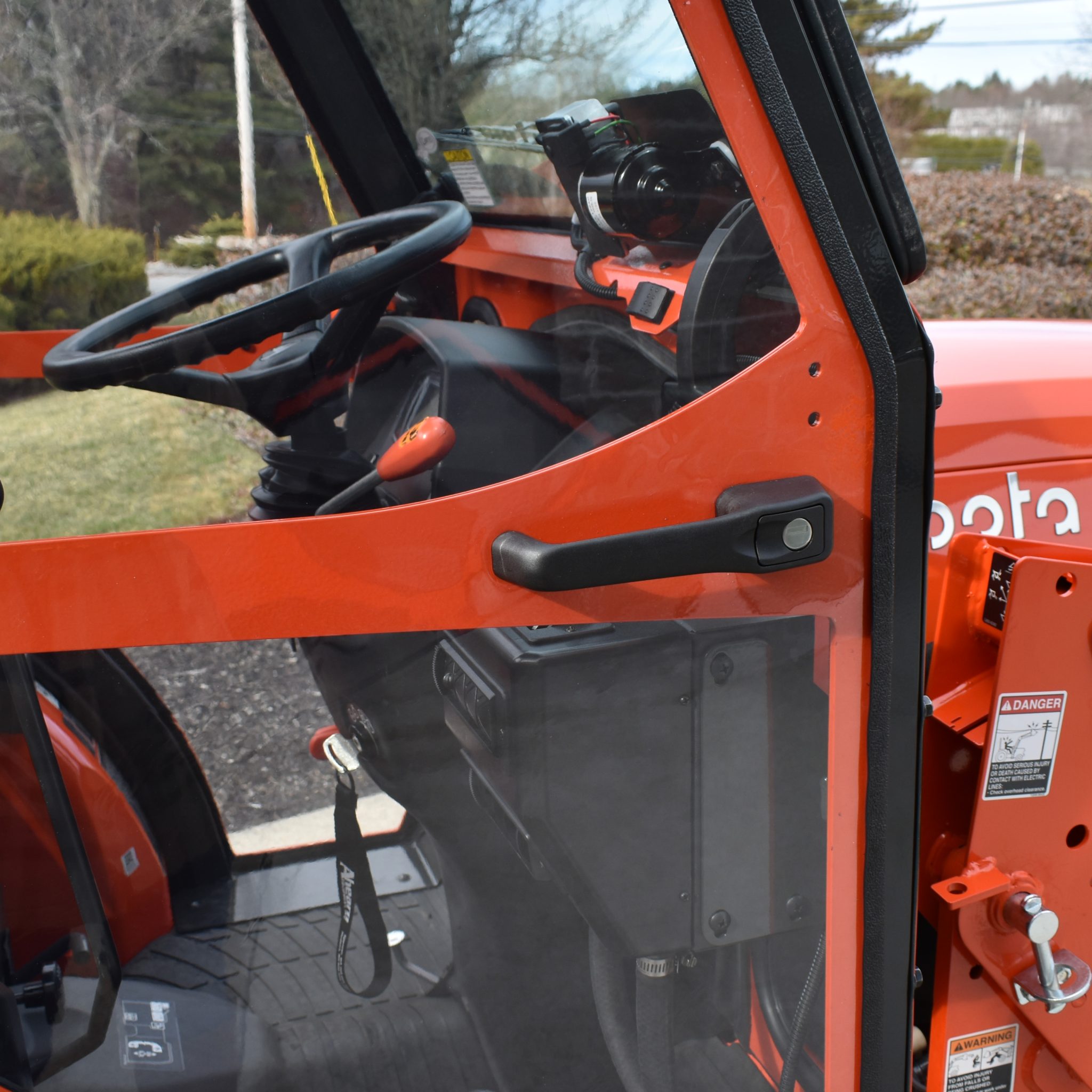

- Framed, rear-hinged, lockable, durable clear vinyl doors
- Venting glass windshield

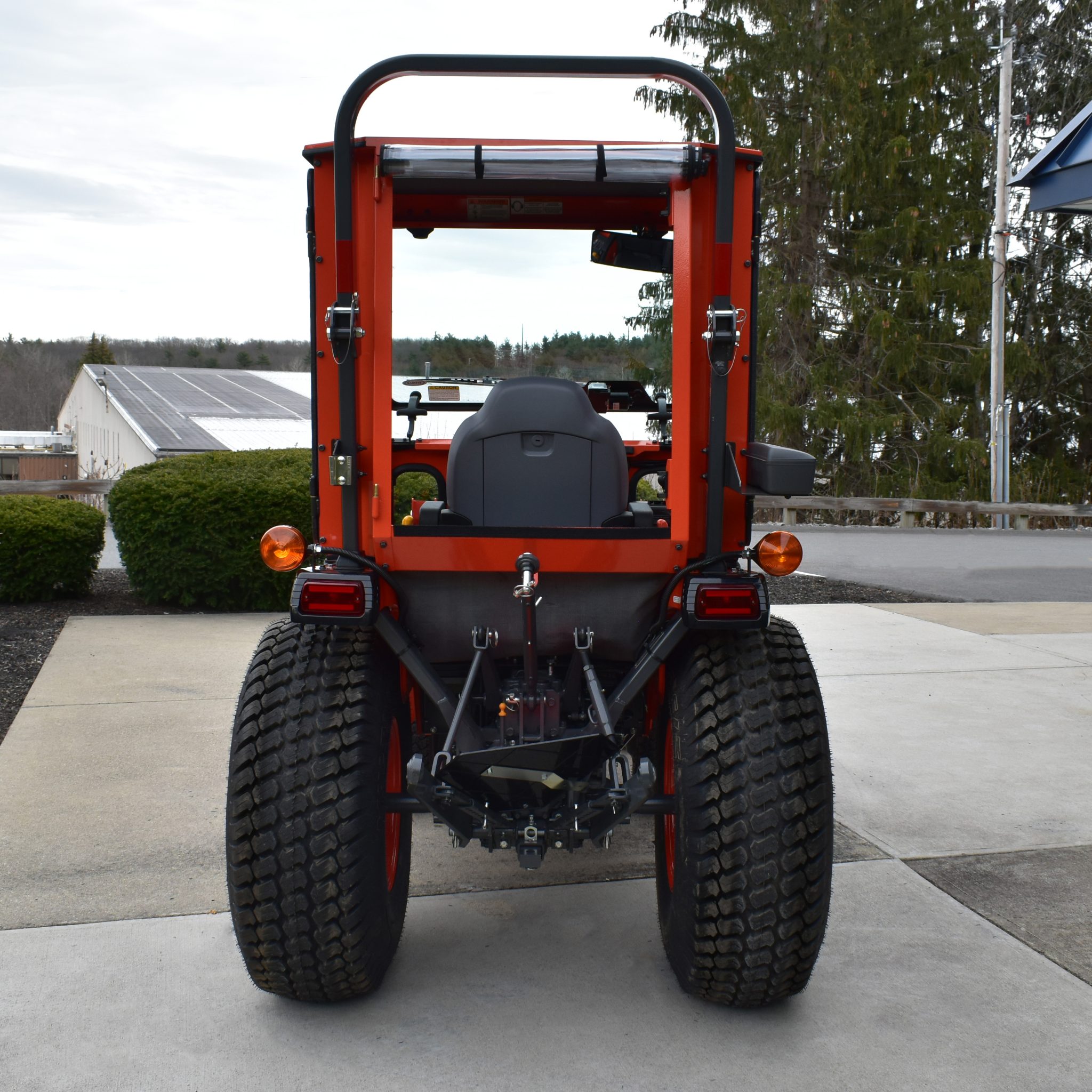

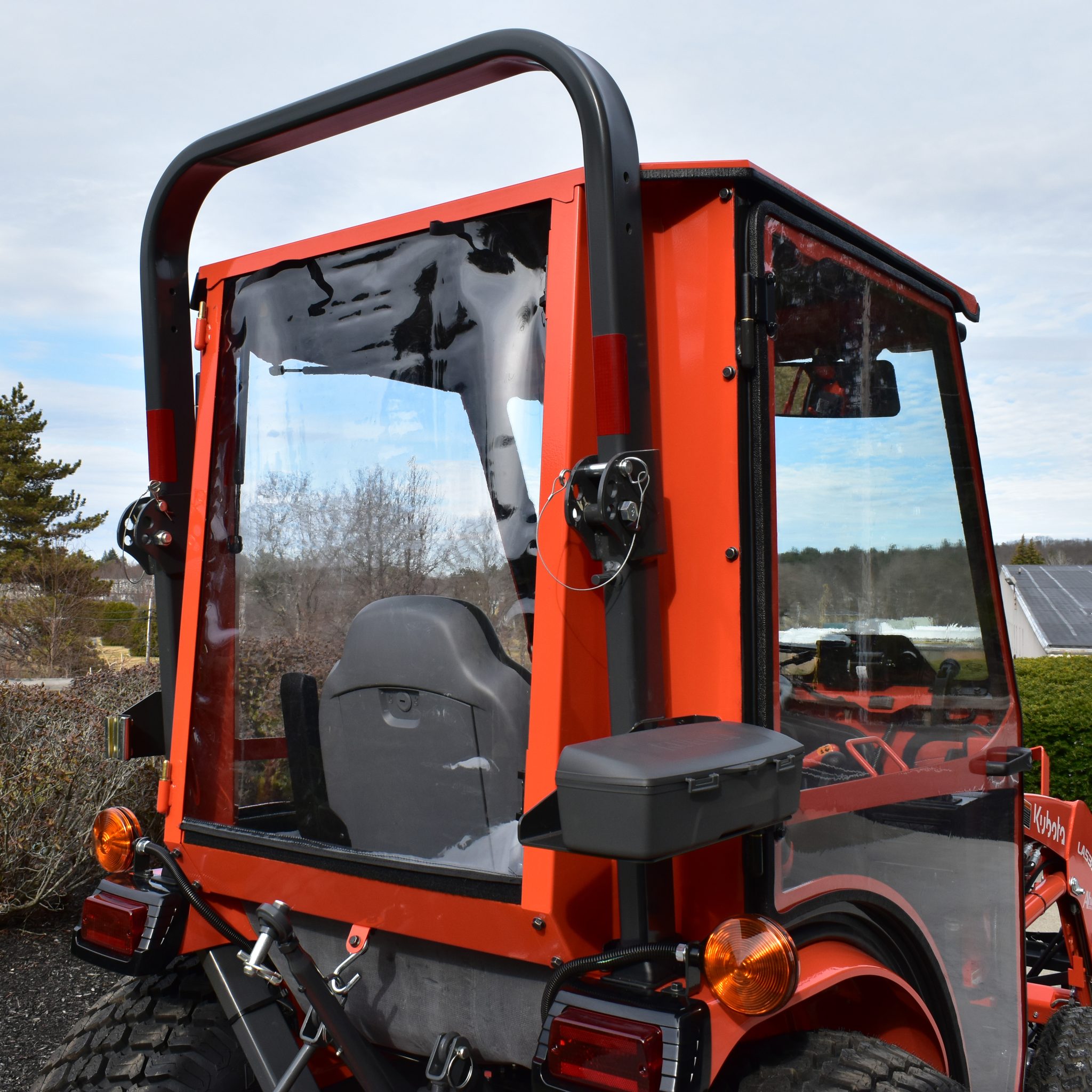

- Venting/removable roll-up vinyl rear panel
- Custom-designed high-strength Curtis frame
- Steel roof with acoustical headliner
- Powder-coated finish—custom factory color-matched/corrosion-resistant
- Pre-drilled holes for accessory work lights and mirrors
- Backhoe Compatible (with adapter kit)
- Shipping dimensions: 75†x 70†x 15â€
- Shipping weight: 324 lbs
- Cab weight: 226 lbs
- Height above floorboard: 59.25†floorboard to roof

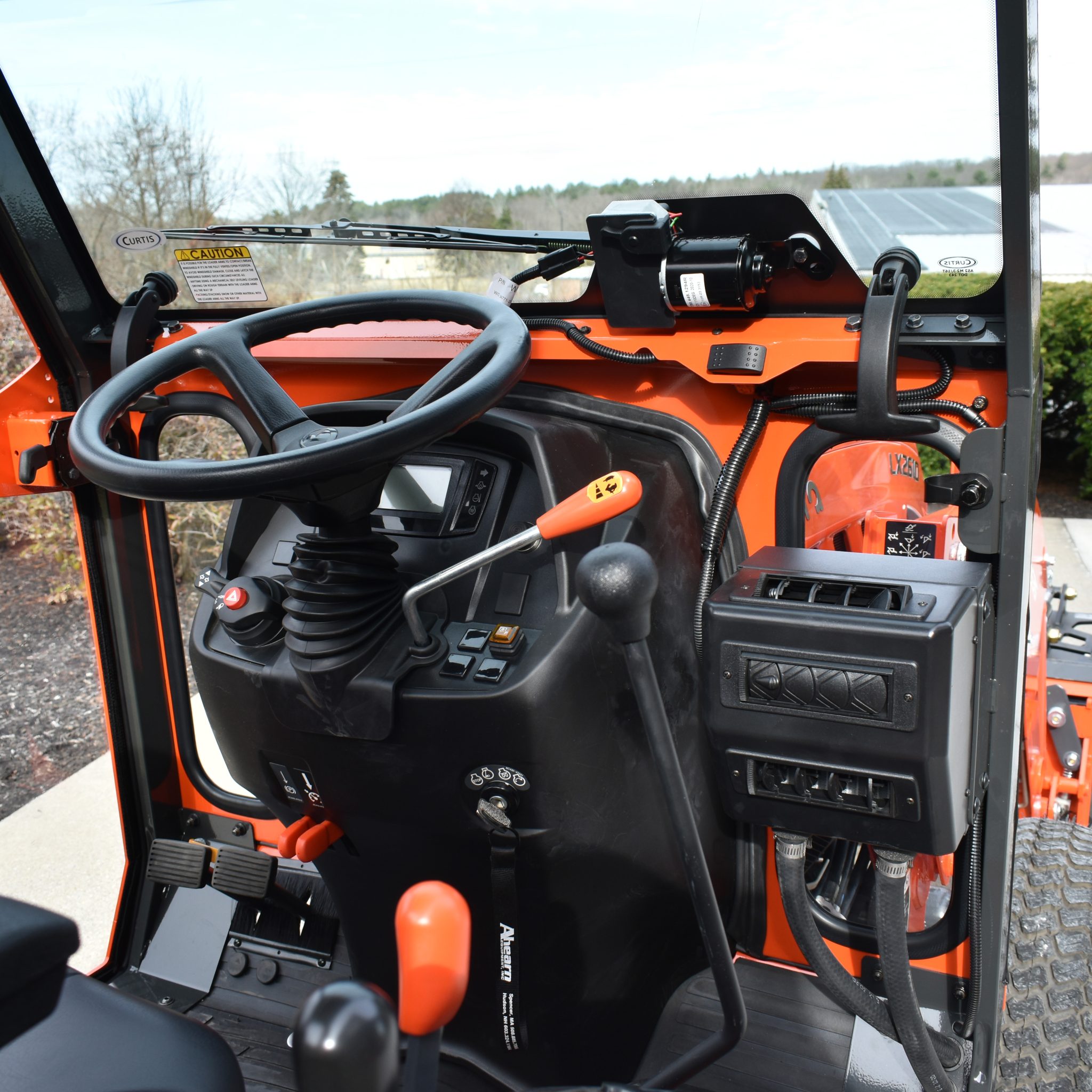

- Heater: 20,000 BTU hot water
- Backhoe compatible: Yes
- Windshield: Glass
- Door windows: Clear vinyl
- Rear panel: Clear vinyl
- Roof: Steel with acoustical headliner
- Wiper: 12-volt heavy-duty, 110-degree sweep
- Pre-drilled holes for optional side mirrors
- Backhoe Kit (1KLXBK)
- 3†round work lights (9LEDW3)
- 2†x 6†low-profile work lights (9LEDW4)
- Strobe light (9LEDS2)
- Dome light (9LEDD14)
- Side mirrors (9PM5)
- Rearview mirror (9PM3)
- Seal kit (9SK11)*
- Sure Step Kit (9CST)
*We recommend the optional seal kit (9SK11) for improved draft and dust protection.
