A/C for the Kubota F-Series 3990
$4,691.48
Description

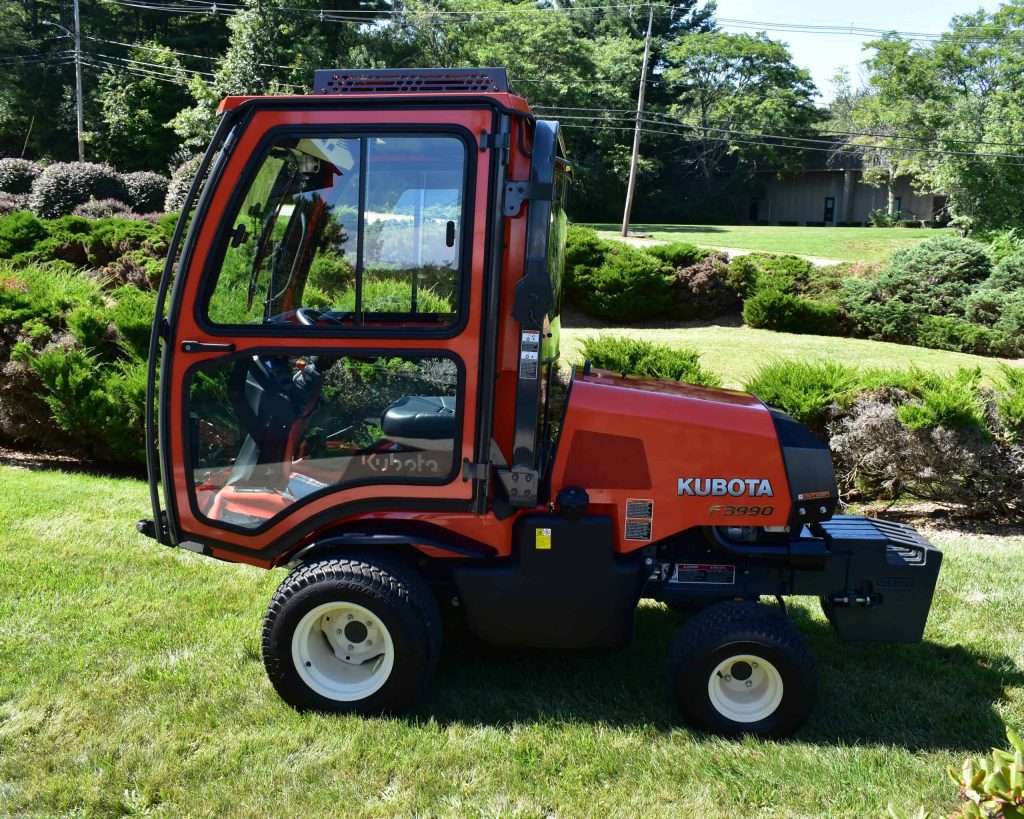

Designed for Kubota F3990 models, this air conditioning system delivers true climate control, offering users the ultimate in operator comfort with protection from the sun, heat, rain, dust, and insects.
SKU:
- Dynamic load control software efficiently manages vehicle electrical power with minimal draw
- Stylish, low-profile design for maximum clearance
- Overhead console features multi-speed fan control and four adjustable, 360-degree louvers
- Power kit includes supplemental alternator
- Easy installation in approximately two hours
- Pre-charged with refrigerant for a streamlined setup
- Includes replacement roof
Required Components
- A/C Unit for the F3990: 1ACUNIT-G2
- A/C Roof: 1ACKF2RFK
- A/C Power Kit: 1ACKF2DRK
- Shipping Dimensions: 30†x 41†x 15â€
- Shipping Weight: 86 lbs
- Weight: 58 lbs (A/C unit with cover)
- Height Above Cab: 3 – 5/8″
- Intrusion into Cab: 2†(operator area), 3†(lowest point)
- System Voltage: 12V DC
- Running Amperage Draw: 60A (high blower speed)
- Housing: Powder-coated, corrosion-resistant aluminum alloy
- Cover: Powder-coated, corrosion-resistant aluminum alloy
- Evaporator Core: Automotive-grade, corrosion-resistant aluminum alloy, tube, and fin
- Condenser Core: Automotive-grade, corrosion-resistant aluminum alloy, bar plate, and fin
- Condenser Fan: Automotive-grade, 12V, 20A condenser fan
- Evaporator Blower: Automotive-grade, 12V, 10A squirrel cage fan with three speeds
- Intake: Laser cut into case, single point, recirculating, non-filtered
- Outlet: Four adjustable louvered vents
- Operator Controls: Compressor on/off switch and system on/off switch, with 3 blower speeds
- Load Control: Patented electronic automated system control of load and function
- Thermostat: Electronic, non-adjustable thermistor sensor
- Refrigerant: 2.1 lbs, R-134a
Includes a one-year warranty against defects in materials and/or workmanship.
